Product Summary
The SG3000GXH24 is a gate turn-off thyristor.
Parametrics
SG3000GXH24 absolute maximum ratings: (1)Repetitve peak off-state, VDRM: 4500V; (2)repetitive peak reverse voltage, VRRM: 16V; (3)Peak turn-off current, ITGDM: 3000A; (4)RMS on-state current, IT: 1200A; (5)peak one cycle surge on-state current, ITSM: 16000A; (6)Critical rate of rise of on-stste, DI/DT: 400A/μs; (7)peak forward gate current, IFGM: 100A; (8)Operating junction temperature, TJ: -40 to +125℃; (9)Storage temperature range, TSTG: -40 to +150℃.
Features
SG3000GXH24 features: (1)Repetitive Peak Off-State Voltage, VDRM=4500V; (2)RMS on-state current: IT=1200A; (3)Peak turn-off Current: IRGQM=3000A; (4)Critical Rate of Rise of On-State Current: di/dt=400A/μs; (5)Critical Rate of Rise of Off-State Voltage: dv/dt=1000V/μs.

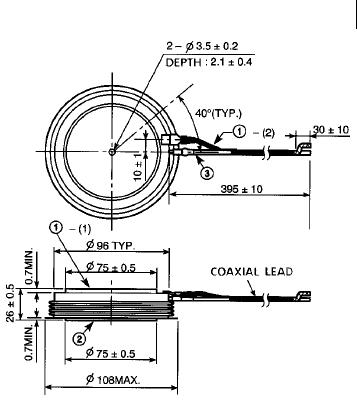

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SG3000GXH24 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
