Product Summary

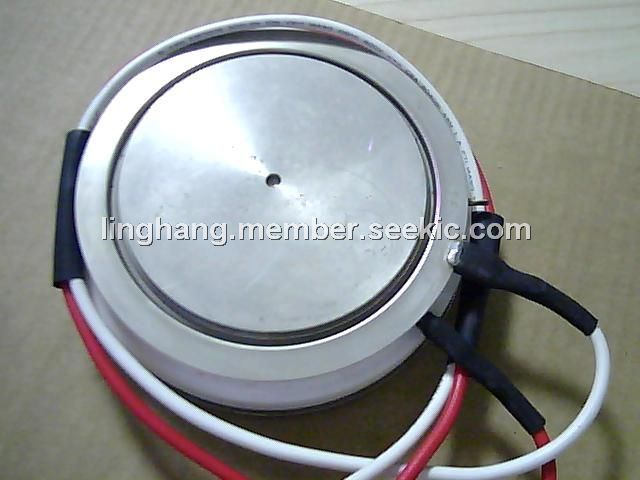

The SG2000EX24 is a gate turn-off thyristor.
Parametrics
SG2000EX24 absolute maximum ratings: (1)Repetitve peak off-state, VDRM: 2500V; (2)Repetitve peak reverse voltage, VRRM: 16V; (3)Peak turn-off current, ITGDM: 2000A; (4)RMS on-state current, IT: 1050A; (6)peak one cycle surge on-state current, ITSM: 14000A; (7)Critical rate of rise of on-stste, DI/DT: 300A/μs; (8)peak forward gate current, IFGM: 70A; (9)Average gate power dissipation, PG: 14W; (10)RMS gate current, IG: 42A; (11)Operating junction temperature, TJ: -40 to +125℃; (12)Storage temperature range, TSTG: -40 to +150℃.
Features
SG2000EX24 features: (1)Repetitive Peak Off-State Voltage, VDRM=1300V, 1600V, 1800V, 2500V; (2)RMS on-state current: IT=1050A; (3)Peak turn-off Current: IRGQM=2000A; (4)Critical Rate of Rise of On-State Current: di/dt=300A/μs; (5)Critical Rate of Rise of Off-State Voltage: dv/dt=1000V/μs.

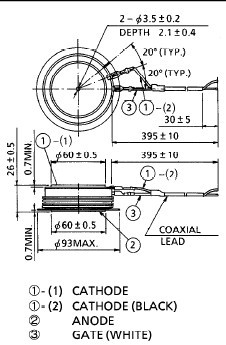

Diagrams
