Product Summary

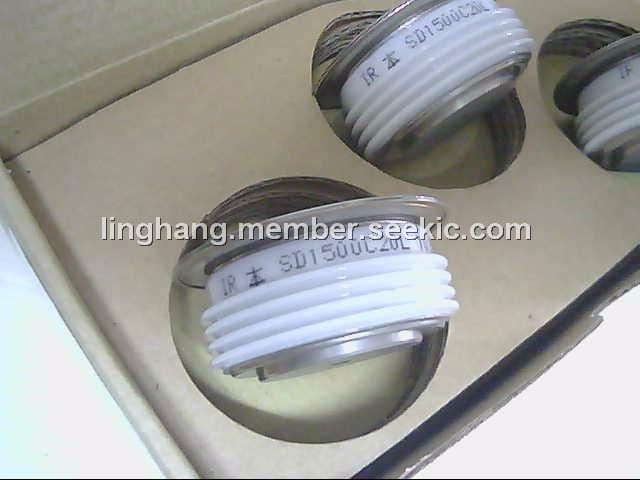

The SD1500C20L is a Standard Recovery Diode. The applications of the SD1500C20L include Converters, Power supplies, Machine tool controls, High power drives, Medium traction applications.
Parametrics
SD1500C20L absolute maximum ratings: (1)IF(AV): 1600 A; Ths: 55℃; (2)IF(RMS): 3010 A; Ths: 25℃; (3)IFSM, 50 Hz: 16600A; 60 Hz: 17400A; (4)I2t, 50 Hz: 1386 kA2s; 60 Hz: 1265kA2s; (5)VRRM, Range: 400 to 3000 V; (6)TJ: -40 to 180℃.
Features
SD1500C20L features: (1)Wide current range; (2)High voltage ratings up to 3000 V; (3)High surge current capabilities; (4)Diffused junction; (5)Hockey PUK version; (6)Case style DO-200AB (B-PUK); (7)Lead (Pb)-free.

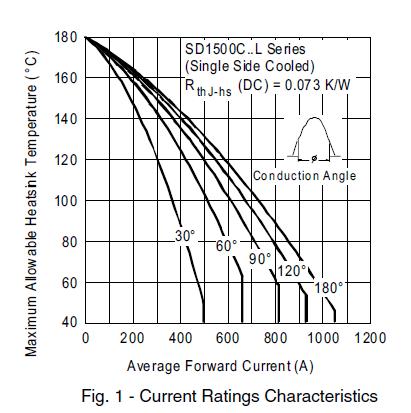

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SD1500C20L |
|
DIODE STD REC 2000V 1600A B-PUK |
Data Sheet |
|
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
 |
SD1500 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
SD1500C |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
SD1500C..L |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
SD1500C20L |
|
DIODE STD REC 2000V 1600A B-PUK |
Data Sheet |
|
|
||||||
|
SD1500C25L |
|
DIODE STD REC 2500V 1600A B-PUK |
Data Sheet |
|
|
||||||
|
SD1500C30L |
|
DIODE STD REC 3000V 1600A B-PUK |
Data Sheet |
|
|
||||||
