Product Summary

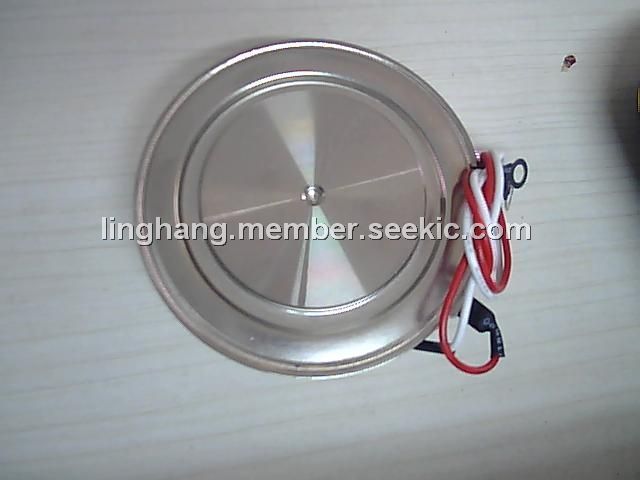

The R400CH12 is a distributed gate thyristor.

Parametrics

R400CH12 absolute maximum ratings: (1)VDRM/VRRM range: 200 to 1200V; (2)TQ: 20 to 35μs; (3)Ths = 55℃, ITAV: 1448A; (4)50% duty Sine wave, ITRM: 4000A; (5)Ccycle TSINK = 55℃ square wave, ITRM: 2900A/μsec.

Features

R400CH12 features: (1)REP/Non-rep, di/dt: 1000/1500A/μs; (2)TC = 25℃, ITRMS: 2943A; (3)TC = 25℃, IT: 2353A; (4)VR ≤ 60%, TJ = 125℃, ITSM: 19500A; (5)VR ≤ 10V, TJ = 125℃, ITSM: 21500A.

Diagrams

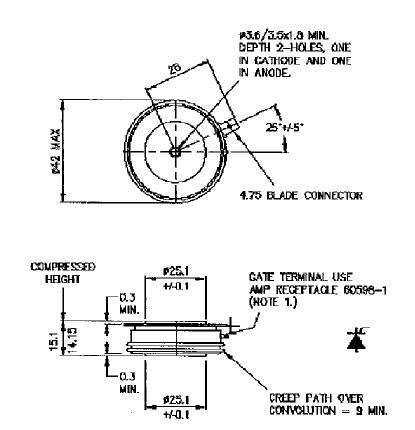

R400CH12 block diagram
