Product Summary

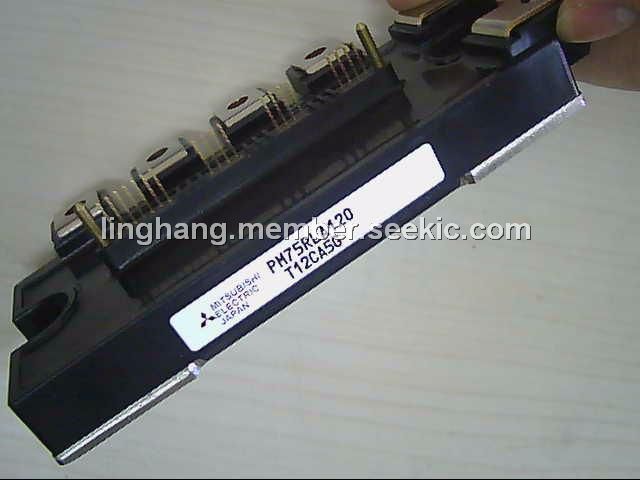

The PM75RLA120 is an intelligent power module for General purpose inverter, servo drives and other motor controls.
Parametrics
PM75RLA120 absolute maximum ratings: (1)VCES, Collector-Emitter Voltage: 1200V; (2)±IC, Collector Current: 75A; (3)±ICP, Collector Current (Peak): 150A; (4)PC: 595W; (5)Tj, Junction Temperature: -20 to +150℃.
Features
PM75RLA120 features: (1)40A, 1200V Current-sense regenerative brake IGBT; (2)Monolithic gate drive & protection logic; (3)Acoustic noise-less 11kW/15kW class inverter application; (4)UL Recognized; (5)Detection, protection & status indication circuits for, shortcircuit, over-temperature & under-voltage.

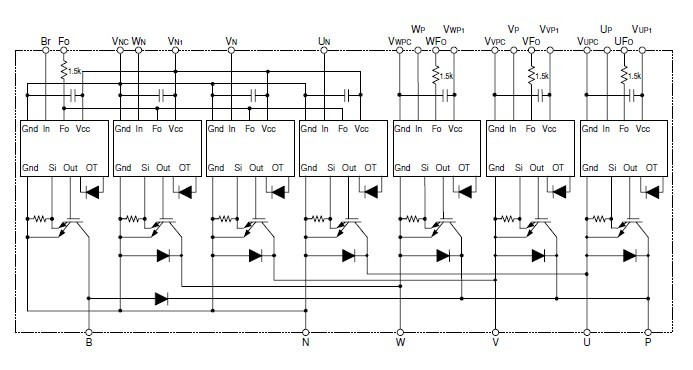

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PM75RLA120 |
|
MOD IPM L-SERIES 1200V 75A |
Data Sheet |
|
|
||||||||||||||
