Product Summary
The PM300DSA120 is an intelligent power module. The Mitsubishi Intelligent Power Module is isolated base module designed for power switching applications operating at frequencies to 20kHz. Built-in control circuits provide optimum gate drive and protection for the IGBT and free-wheel diode power devices. The applications of the PM300DSA120 include Inverters, UPS, Motion/Servo Control, Power Supplies.
Parametrics
PM300DSA120 absolute maximum ratings: (1)Power Device Junction Temperature, Tj: -20 to 150℃; (2)Storage Temperature, Tstg: -40 to 125℃; (3)Case Operating Temperature, TC -20 to 100℃; (4)Mounting Torque, M5 Mounting Screws: 3.92 to 5.88 N · m; (5)Mounting Torque, M5 Main Terminal Screws: 8.83 to 10.8 N · m; (6)Module Weight (Typical): 910 Grams; (7)Supply Voltage Protected by OC and SC (VD = 13.5 - 16.5V, Inverter Part), VCC(prot.): 800 Volts; (8)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.), Viso: 2500 Vrms.
Features
PM300DSA120 features: (1)Complete Output Power Circuit; (2)Gate Drive Circuit; (3)Protection Logic, Short Circuit; Over Current; Over Temperature; Under Voltage.

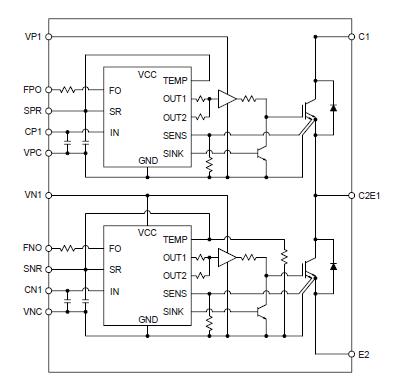

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
PM300DSA120 |
MOD IPM DUAL 1200V 300A |
Data Sheet |
Negotiable |
|
||||||||
