Product Summary

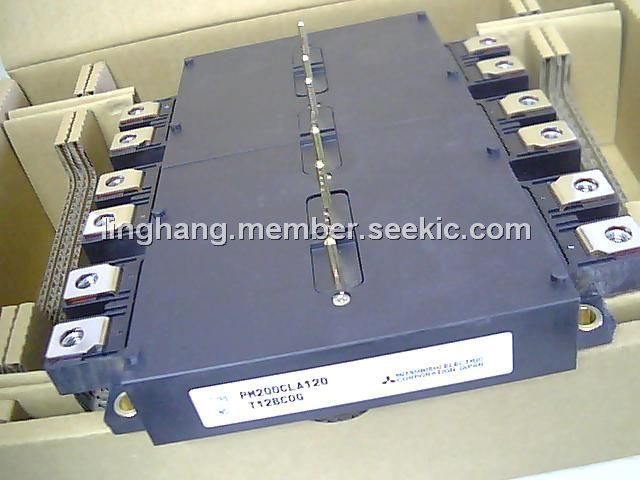

The PM200CLA120 is an intelligent power module. The applications of the PM200CLA120 include General purpose inverter, servo drives and other motor controls.
Parametrics
PM200CLA120 absolute maximum ratings: (1)Collector-Emitter Voltage, VCES: 1200V; (2)Collector Current, ±IC: 200A; (3)Collector Current (Peak), ±ICP: 400A; (4)Collector Dissipation, PC: 1041W; (5)Junction Temperature, Tj: -20 to +150℃.
Features
PM200CLA120 features: (1)Adopting new 5th generation IGBT (CSTBT) chip, which performance is improved by 1μm fine rule process. For example, typical Vce(sat)=1.9V @Tj=125℃; (2)I adopt the over-temperature conservation by Tj detection of CSTBT chip, and error output is possible from all each conservation upper and lower arm of IPM; (3)3φ200A, 1200V Current-sense IGBT type inverter; (4)Monolithic gate drive & protection logic; (5)Detection, protection & status indication circuits for, shortcircuit, over-temperature & under-voltage (Fo available from all arm devices); (6)Acoustic noise-less 37kW class inverter application; (7)UL Recognized.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PM200CLA120 |
|
MOD IPM L-SER 6PAC 1200V 200A |
