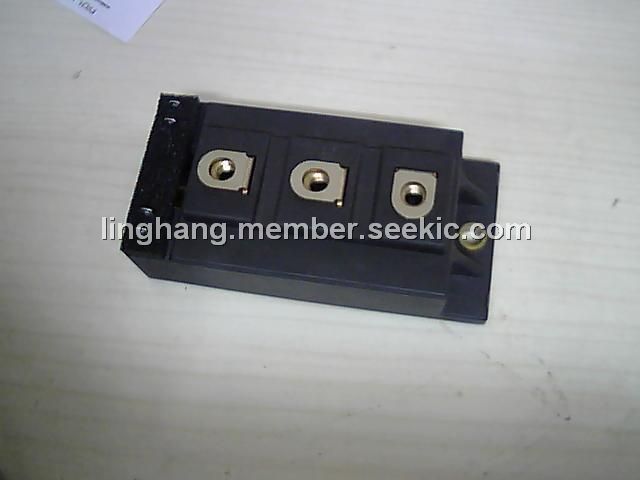

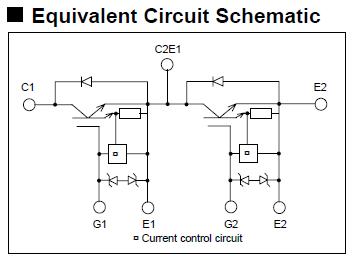

The 2MBI300N-060 is an IGBT Module. Its applications include Inverter for Motor drive, AC and DC Servo drive amplifier, Uninterruptible power supply and Industrial machines, such as Welding machines.
Parametrics
2MBI300N-060 absolute maximum ratings: 1)collector-emitter voltage, VCES: 600V; (2)gate-emitter voltage, VGES: ±20V; (3)collector current, continuous, IC: 300A; 1ms, IC pulse: 600A; -IC: 300A; 1ms, -IC pulse: 600A; (4)max power dissipation, Pc: 1100W; (5)operating temperature, Tj: +150℃; (6)storage temperature, Tstg: -40 to +125℃; (7)isolation voltage, Vis: AC 2500(1min) V; (8)screw torque, mounting: 3.5N.M; terminals: 3.5N.m.
Features
2MBI300N-060 features: (1)VCE(sat) classified for easy parallel connection; (2)High speed switching; (3)Voltage drive; (4)Low inductance module structure.
