Product Summary

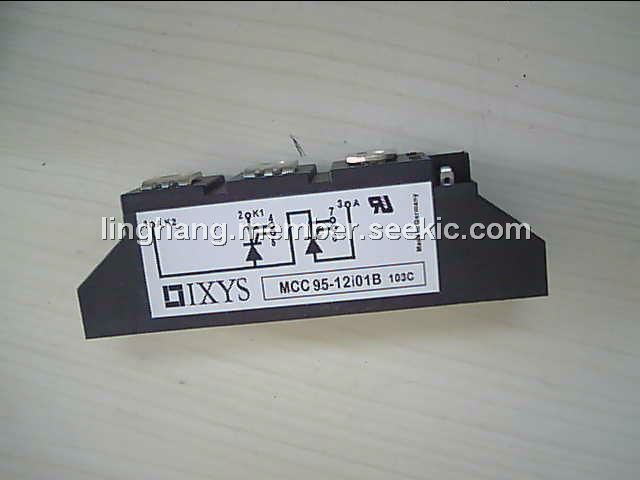

The MCC95-12IO1B is a Thyristor/Diode Module. The applications of the MCC95-12IO1B include DC motor control, Softstart AC motor controller, Light, heat and temperature control.
Parametrics
MCC95-12IO1B absolute maximum ratings: (1)ITRMS, IFRMS, TVJ = TVJM: 180 A; (2)ITAVM, IFAVM, TC = 85℃; 180°sine: 116 A; (3)ITSM, IFSM, TVJ = 45℃; t = 10 ms (50 Hz), sine: 2250 A; VR = 0 t = 8.3 ms (60 Hz), sine: 2400 A; TVJ = TVJM t = 10 ms (50 Hz), sine: 2000 A; VR = 0 t = 8.3 ms (60 Hz), sine: 2150 A; (4)I2dt, TVJ = 45℃, t = 10 ms (50 Hz), sine: 25 to 300 A2s; VR = 0 t = 8.3 ms (60 Hz), sine: 23 to 900 A2s; TVJ = TVJM t = 10 ms (50 Hz), sine: 20 000 A2s; VR = 0 t = 8.3 ms (60 Hz), sine: 19 100 A2s; (5)(di/dt)cr, TVJ = TVJM, f =50 Hz, tP =200 μs, VD = 2/3 VDRM, IG = 0.45 A, diG/dt = 0.45 A/μs, repetitive, IT = 250 A: 150 A/μs; non repetitive, IT = ITAVM: 500 A/μs; (6)(dv/dt)cr, TVJ = TVJM, RGK = ∞, VDR = 2/3 VDRM: 1000 V/μs; (7)PGM, TVJ = TVJM tP = 30μs: 10 W; IT = ITAVM tP = 300μs: 5 W; (8)PGAV: 0.5 W; (9)VRGM: 10 V; (10)TVJ: -40 to +125℃; (11)TVJM: 125℃; (12)Tstg: -40 to +125℃.
Features
MCC95-12IO1B features: (1)International standard package, JEDEC TO-240 AA; (2)Direct copper bonded Al2O3 -ceramic base plate; (3)Planar passivated chips; (4)Isolation voltage 3600 V; (5)UL registered, E 72873; (6)Gate-cathode twin pins for version 1.
