Product Summary

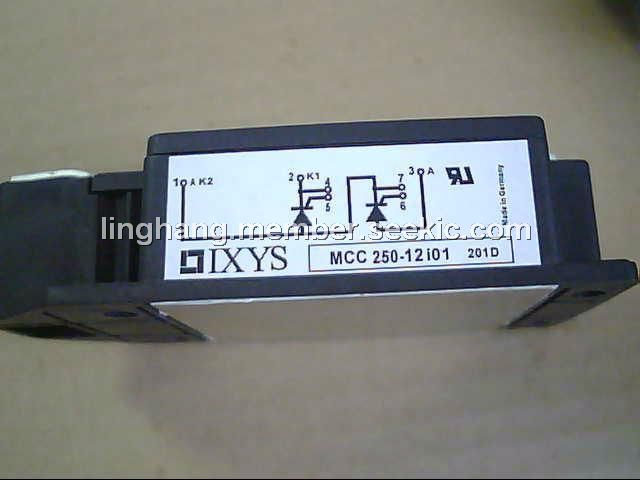

The MCC250-12io1 is a Thyristor/Diode Module. The applications of the MCC250-12io1 include Motor control, Power converter, Heat and temperature control for industrial furnaces and chemical processes, Lighting control, Contactless switches.
Parametrics
MCC250-12io1 absolute maximum ratings: (1)ITRMS, IFRMS, TVJ = TVJM: 450 A; (2)ITAVM, IFAVM, TC = 85℃; 180°sine: 287 A; (3)ITSM, IFSM, TVJ = 45℃; t = 10 ms (50 Hz), sine: 9000 A; VR = 0 t = 8.3 ms (60 Hz), sine: 9600 A; TVJ = TVJM t = 10 ms (50 Hz), sine: 7800 A; VR = 0 t = 8.3 ms (60 Hz), sine: 8500 A; (4)I2dt, TVJ = 45℃, t = 10 ms (50 Hz), sine: 405,000 A2s; VR = 0 t = 8.3 ms (60 Hz), sine: 380,000 A2s; TVJ = TVJM t = 10 ms (50 Hz), sine: 304,000 A2s; VR = 0 t = 8.3 ms (60 Hz), sine: 300,000 A2s; (5)(di/dt)cr, TVJ = TVJM, f =50 Hz, tP =200 μs, VD = 2/3 VDRM, IG = 0.45 A, diG/dt = 0.45 A/μs, repetitive, IT = 250 A: 100 A/μs; non repetitive, IT = ITAVM: 800 A/μs; (6)(dv/dt)cr, TVJ = TVJM, RGK = ∞, VDR = 2/3 VDRM: 1000 V/μs; (7)PGM, TVJ = TVJM tP = 30μs: 120 W; IT = ITAVM tP = 300μs: 60 W; (8)PGAV: 20 W; (9)VRGM: 10 V; (10)TVJ: -40 to +140℃; (11)TVJM: 140℃; (12)Tstg: -40 to +125℃.
Features
MCC250-12io1 features: (1)International standard package; (2)Direct copper bonded Al2O3 - ceramic base plate; (3)Planar passivated chips; (4)Isolation voltage 3600 V; (5)UL registered, E 72873; (6)Keyed gate/cathode twin pins.
Diagrams
