Product Summary

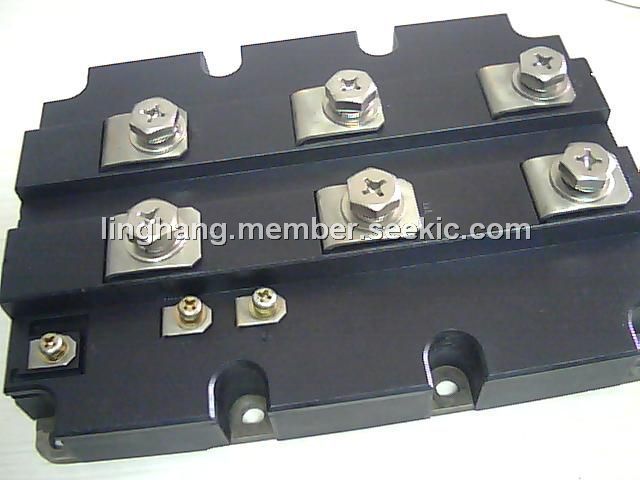

The FD800R33KF2C is an IGBT module. The applications of the FD800R33KF2C include chopper applications, traction drives.
Parametrics
FD800R33KF2C absolute maximum ratings: (1)Collector-emitter voltage, TVJ=25℃, VCES: 3300V; TVJ=-25℃, VCES: 3300V; (2)DC-collector current, TC=80℃, TVJ=150℃, IC nom: 800A; TC=25℃, TVJ=150℃, IC nom: 1300A; (3)Repetitive peak collector current, TP=1ms, ICRM: 1600A; (4)Total power dissipation, TC=25℃, tvj=150℃, ptot: 9.60KW; (5)Gate-emitter peak voltage, VGES: ±20V.
Features
FD800R33KF2C feature: ALSIC base plate for increased thermal cycling capability.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FD800R33KF2C |
Infineon Technologies |
IGBT Modules 3300V 800A CHOPPER |
Data Sheet |
|
|
||||||||||
|
FD800R33KF2C-K |
Infineon Technologies |
IGBT Modules N-CH 3.3KV 1.3KA |
Data Sheet |
|
|
||||||||||
