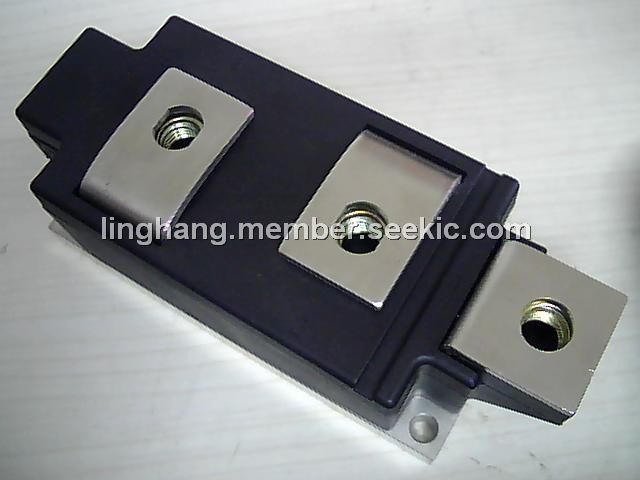

The TT570N14KOF is a Phase Control Thyristor Module.

Parametrics

TT570N14KOF absolute maximum ratings: (1)repetitive peak forward off-state and reverse voltages, Tvj = -40℃ Tvj max, VDRM, VRRM: 1400V to 1600V; (2)non-repetitive peak forward off-state voltage, VDSM: 1400V to 1600V; (3)non-repetitive peak reverse voltage, VRSM: 1500V to 1700V; (4)maximum RMS on-state current, ITRMSM: 900A; (5)average on-state current, TC = 85℃, ITAVM: 570A; (6)surge current, Tvj = 25℃, tP = 10 ms, ITSM: 17000A; Tvj = Tvj max, tP = 10 ms, ITSM: 14000A; (7)I2t-value, Tvj = 25℃, tP = 10 ms, I2t: 1445,000A2s; Tvj = Tvj max, tP = 10 ms, I2t: 980,000A2s; (8)critical rate of rise of on-state current, DIN IEC 747-6; f = 50 Hz, iGM = 1 A, diG/dt = 1 A/μs, (diT/dt)cr: 200A/μs; (9)critical rate of rise of off-state voltage, Tvj = Tvj max, vD = 0,67 VDRM 6.Kennbuchstabe / 6th letter F, (dvD/dt)cr: 1000 V/μs.

Features

TT570N14KOF features: (1)on-state voltage, Tvj = Tvj max , iT = 700 A, VT: max.1.53V; (2)Tvj = Tvj max , iT = 700 A, Tvj = Tvj max, V(TO): 0.9 V; (3)slope resistance, Tvj = Tvj max, rT: 0.27 mΩ; (4)gate trigger current, Tvj = 25℃, vD = 6 V, IGT: max. 250 mA; (5)gate trigger voltage, Tvj = 25℃, vD = 6 V, VGT: max. 2.2 V; (6)gate non-trigger current, Tvj = Tvj max , vD = 6 V, IGD max: 10mA; Tvj = Tvj max , vD = 0,5 VDRM, IGD max: 5mA; (7)gate non-trigger voltage, Tvj = Tvj max , vD = 0,5 VDRM, VGD max: 0.25 V; (8)holding current, Tvj = 25℃, vD = 6 V, RA = 5 Ω IH max: 300 mA; (9)latching current, Tvj = 25℃, vD = 6 V, RGK ≥ 10 Ω, iGM = 1 A, diG/dt = 1 A/μs, tg = 20 μs, IL max: 1500 mA; (10)forward off-state and reverse current, Tvj = Tvj max, vD = VDRM, vR = VRRM, iD, iR max: 140 mA; (11)gate controlled delay time, DIN IEC 747-6, Tvj = 25℃,iGM = 1 A, diG/dt = 1 A/μs, tgd max: 4 μs.

Diagrams

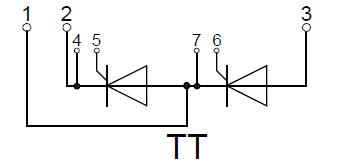

TT570N14KOF block diagram
