Product Summary

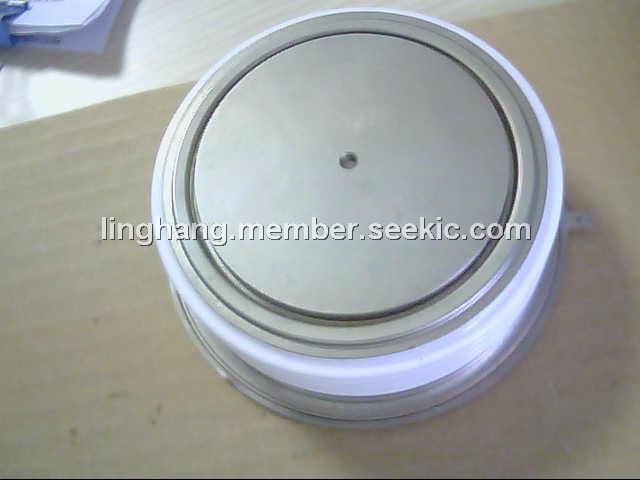

The R600CH25 is a distributed gate thyristor.

Parametrics

R600CH25 absolute maximum ratings: (1)VDRM/VRRM range: 1600 to 2100V; (2)TQ: 50 to 70μs; (3)Ths = 55℃, ITAV: 2550A; (4)50% duty Sine wave, ITRM: 6400A; (5)Ccycle TSINK = 55℃ square wave, ITRM: 44000A/μsec.

Features

R600CH25 features: (1)REP/Non-rep, di/dt: 1000/1500A/μs; (2)TC = 25℃, ITRMS: 5087A; (3)TC = 25℃, IT: 4390A; (4)VR ≤ 60%, TJ = 125℃, ITSM: 33800A; (5)VR ≤ 10V, TJ = 125℃, ITSM: 37200A.

Diagrams

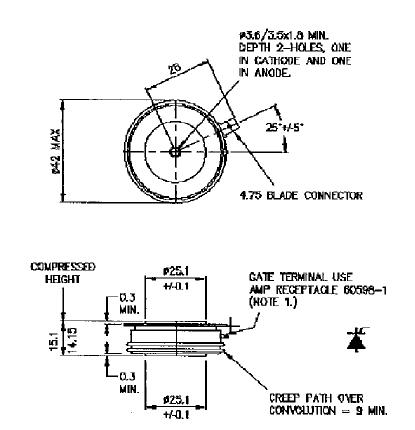

R600CH25 block diagram

R600-000-003
