Product Summary

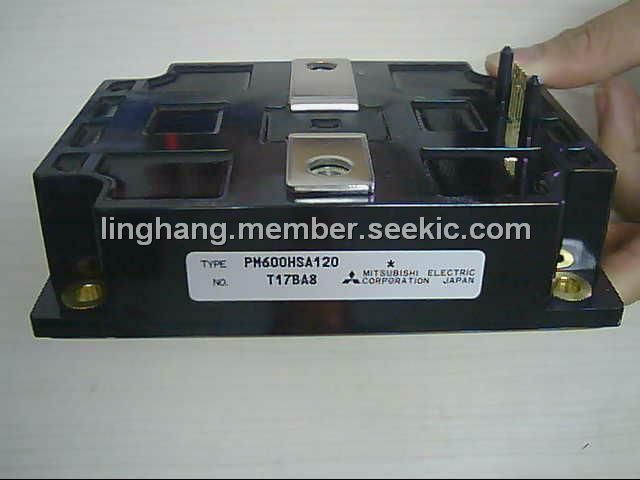

The PM600HSA120 is an intelligent power module. The Mitsubishi Intelligent Power Module is isolated base module designed for power switching applications operating at frequencies to 20kHz. Built-in control circuits provide optimum gate drive and protection for the IGBT and free-wheel diode power devices. The applications of the PM600HSA120 include Inverters, UPS, Motion/Servo Control, Power Supplies.
Parametrics
PM600HSA120 aboslute maximum ratings: Power Device Junction Temperature, Tj: -20 to 150℃; (2)Storage Temperature, Tstg: -40 to 125℃; (3)Case Operating Temperature, TC -20 to 100℃; (4)Mounting Torque, M5 Mounting Screws: 3.92 to 5.88 N · m; (5)Mounting Torque, M5 Main Terminal Screws: 3.92 to 5.88 N · m; (6)Module Weight (Typical): 1090 Grams; (7)Supply Voltage Protected by OC and SC (VD = 13.5 - 16.5V, Inverter Part), VCC(prot.): 800 Volts; (8)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.), Viso: 2500 Vrms.
Features
PM600HSA120 features: (1)Complete Output Power Circuit; (2)Gate Drive Circuit; (3)Protection Logic, Short Circuit; Over Current; Over Temperature; Under Voltage.

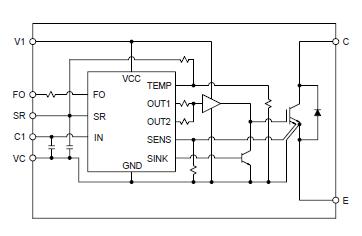

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PM600HSA120 |
|
MOD IPM HF 1200V 600A |
Data Sheet |
|
|
||||||||||||
