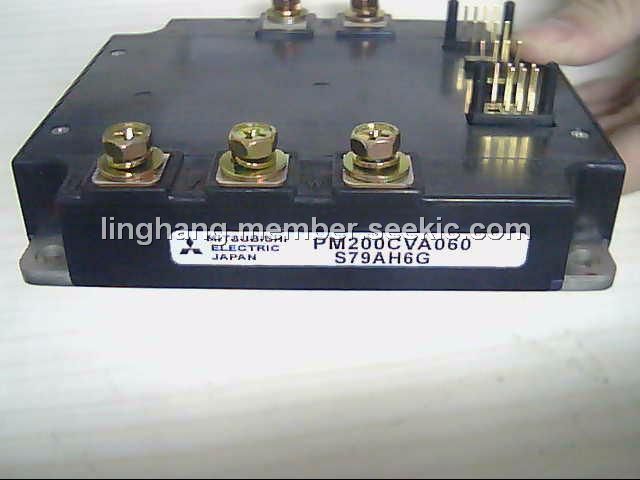

Product Summary
The PM200CVA060 is an intelligent power module. The applications of the PM200CVA060 include General purpose inverter, servo drives and other motor controls.
Parametrics
PM200CVA060 absolute maximum ratings: (1)Collector-Emitter Voltage, VCES: 600V; (2)Collector Current, ±IC: 200A; (3)Collector Current (Peak), ±ICP: 400A; (4)Collector Dissipation, PC: 541W; (5)Junction Temperature, Tj: -20 to +150℃.
Features
PM200CVA060 features: (1)3φ200A, 600V Current-sense IGBT for 20kHz switching; (2)Monolithic gate drive & protection logic; (3)Detection, protection & status indication circuits for overcurrent, short-circuit, over-temperature & under-voltage (P-FO available from upper leg devices); (4)Acoustic noise-less 22kW class inverter application; (5)UL Recognized.

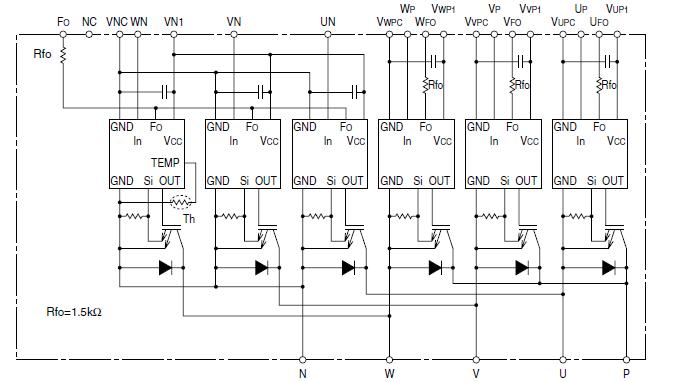

Diagrams
