Product Summary
The FZ1600R17KE3 is an IGBT-inverter.
Parametrics
FZ1600R17KE3 absolute maximum ratings: (1)Collektor emitter sperrspannung, VCES: 1700V; (2)Kollektor daurgleichstrom, ICnom: 1600A; (3)DC collector current, IC: 2300A; (4)Periodischer kollektor spitzenstrom, ICRM: 3200A; (5)Gate emitter spitzenspannung, VGES: +/-20V.
Features
FZ1600R17KE3 features: (1)Isolation prufspannung 3.4kV; (2)Creepage distance: 32.0 mm; (3)Clearance distance: 19.0 mm; (4)Thermal resistance, case to heatsink: 6,00 K/kw; (5)Maximum junction temperature: 150℃.

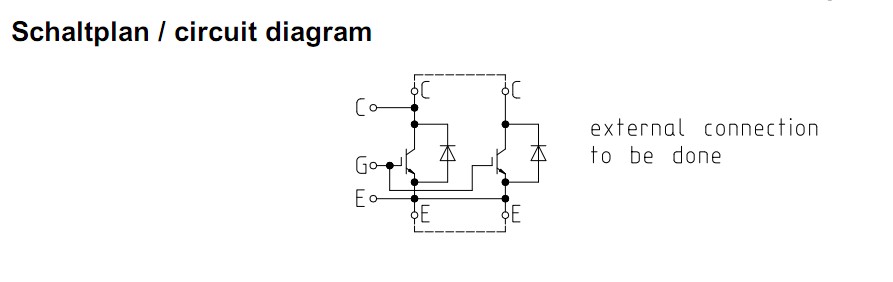

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FZ1600R17KE3 |
Infineon Technologies |
IGBT Modules N-CH 1.7KV 2.3KA |
Data Sheet |
|
|
||||||||
|
FZ1600R17KE3_B2 |
Infineon Technologies |
IGBT Modules N-CH 1.7KV 2.4KA |
Data Sheet |
|
|
||||||||
