Product Summary

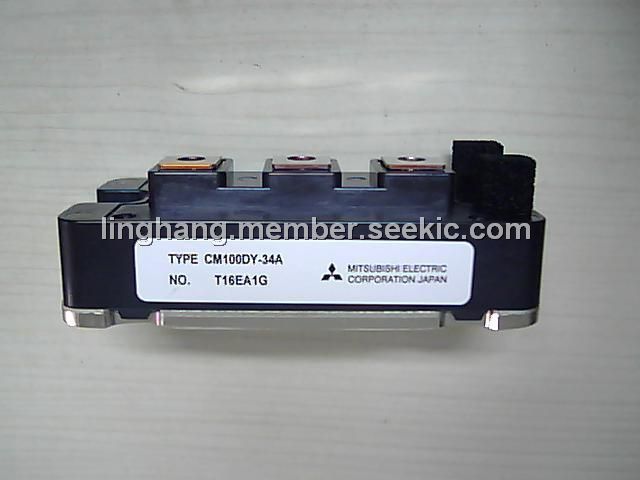

Thr CM100DY-34A is an IGBT module. The applications of the CM100DY-34A include General purpose inverters & Servo controls, etc.
Parametrics
CM100DY-34A absolute maximum ratings: (1)Collector-emitter voltage, G-E Short, VCES: 1700V; (2)Gate-emitter voltage, C-E Short, VGES: ±20V; (3)Collector current, DC, TC= 108℃, IC: 100A; (4)Collector current, pulse, ICM: 200A; (5)Emitter current, operation, IE: 100A; (6)Emitter current, pulse, IEM: 200A; (7)Maximum collector dissipation, TC= 25℃, PC: 960W; (8)Junction temperature, TJ: -40 to +150℃; (9)Storage temperature, Tstg: -40 to +125℃; (10)Isolation voltage, Viso: 3500V.
Features
CM100DY-34A features: (1)IC: 100A; (2)VCES: 1700V; (3)Insulated Type; (4)2-elements in a pack.

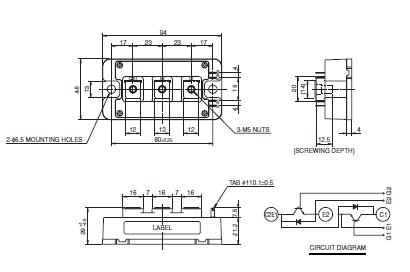

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CM100DY-34A |
|
IGBT MOD DUAL 1700V 100A A SER |
Data Sheet |
|
|
||||||
