Product Summary

The SKT341/14E is a Line Thyristor. The applications of the SKT341/14E include DC motor control, controlled rectifiers, AC controllers, recommended snubber network e.g. for VVRMS≤400V: R=33Ω/32W, C=0.47μF.

Parametrics

SKT341/14E absolute maximum ratings: (1)ITAV: 230A; (2)ID: 300A; (3)IRMS: 330A; (4)ITSM: 5700A; (5)I2T: 162000A2S; (6)VT: MAX.1.9V; (7)VT(TO): MAX.1V; (8)RT: MAX.0.9MΩ; (9)IDD;IRD: MAX.40MA.

Features

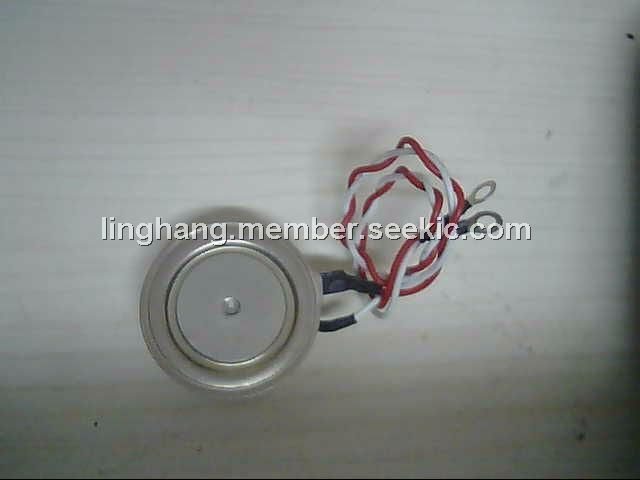

SKT341/14E features: (1)Hermetic metal case with ceramic insulator; (2)Capsule package for double sided cooling; (3)Shallow design with single sided cooling; (4)International standard case; (5)Off-state and reverse voltages up to 1800V.

Diagrams

SKT341/14E block diagram
