Product Summary

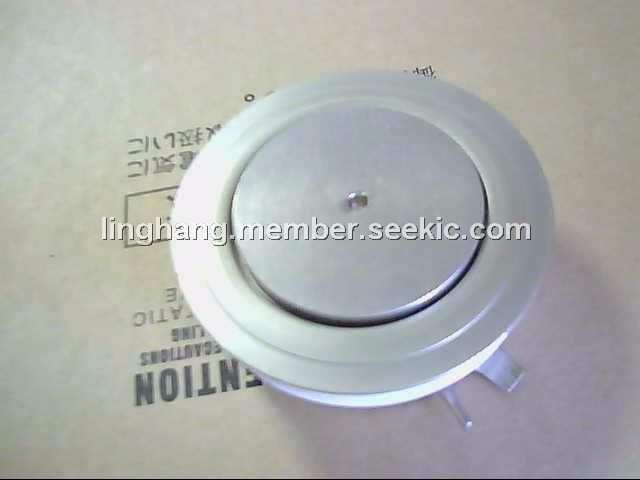

The SG1500EX24 is a gate turn-off thyristor.

Parametrics

SG1500EX24 absolute maximum ratings: (1)Repetitve peak off-state, VDRM: 2500V; (2)repetitive peak reverse voltage, VRRM: 16V; (3)Peak turn-off current, ITGDM: 1500A; (4)RMS on-state current, IT: 750A; (5)peak one cycle surge on-state current, ITSM: 8000A; (6)Critical rate of rise of on-stste, DI/DT: 500A/μs; (7)peak forward gate current, IFGM: 400A; (8)Operating junction temperature, TJ: -40 to +125℃; (9)Storage temperature range, TSTG: -40 to +150℃.

Features

SG1500EX24 features: (1)Repetitive Peak Off-State Voltage, VDRM=2500V; (2)RMS on-state current: IT=750A; (3)Peak turn-off Current: IRGQM=1500A; (4)Critical Rate of Rise of On-State Current: di/dt=500A/μs; (5)Critical Rate of Rise of Off-State Voltage: dv/dt=1000V/μs.

Diagrams

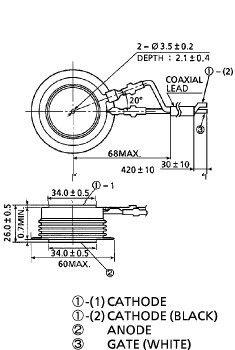

SG1500EX24 block diagram
