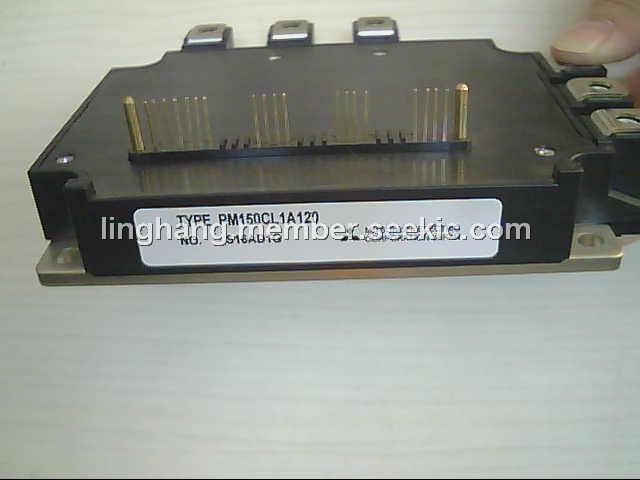

The PM150CL1A120 is an intelligent power module. The applications of the PM150CL1A120 include General purpose inverter, servo drives and other motor controls.
Parametrics
PM150CL1A120 absolute maximum ratings: (1)Collector-Emitter Voltage, VCES: 1200V; (2)Collector Current, ±IC: 150A; (3)Collector Current (Peak), ±ICP: 120A; (4)Collector Dissipation, PC: 833W; (5)Junction Temperature, Tj: -20 to +150℃.
Features
PM150CL1A120 features: (1)Adopting new 5th generation Full-Gate CSTBTTM chip; (2)The over-temperature protection which detects the chip surface temperature of CSTBTTM is adopted; (3)Error output signal is possible from all each protection upper and lower arm of IPM; (4)Compatible L-series package.

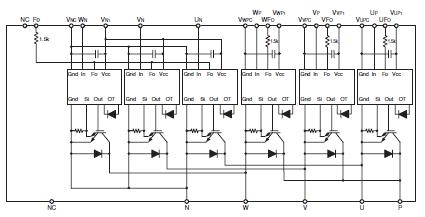

Diagrams
