Product Summary

The AD50F08KDC is a Fast Asymmetric Thyristor.

Parametrics

AD50F08KDC absolute maximum ratings: (1)VDSM = VDRM, VDRM: 800 to 1300 V; (2)tp = 1μs, , VRRM: 15V; (3)ITRMSM: 120A; (4)10ms, ITSM: 1300A; (5)10ms, i2dt: 8.45A2s; (6)180°el, ITAVM/TC: 50/85 A/℃; (7)tvj = tvj max, V(TO): 1.3V; (8)Tvj = tVJ max, rT: 3.75mΩ; (9)DIN IEC, (di/dt)/cr: 120A/μs.

Features

AD50F08KDC features: (1)DIN IEC 747-6, (di/dt)CR: 500V/μs; (2)180°el, RthJC: 0.45℃/W; (3)RthCK: 0.16℃/W; (4)tvj max: 125℃; (5)Outline: 119.

Diagrams

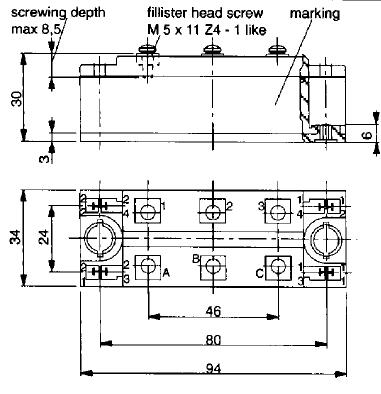

AD50F08KDC block diagram

AD50
AD50

Other


Data Sheet

Negotiable
AD50 Medical
AD50 Medical

Other


Data Sheet

Negotiable

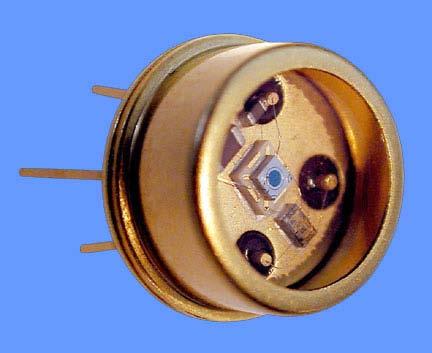

AD500-1.3G-TO5
AD500-1.3G-TO5

Pacific Silicon Sensor

Photodiodes High Speed Si APD w/1.3Ghz Amplifier

Data Sheet

0-1: $100.32
1-5: $89.76
5-10: $81.84
10-50: $75.24

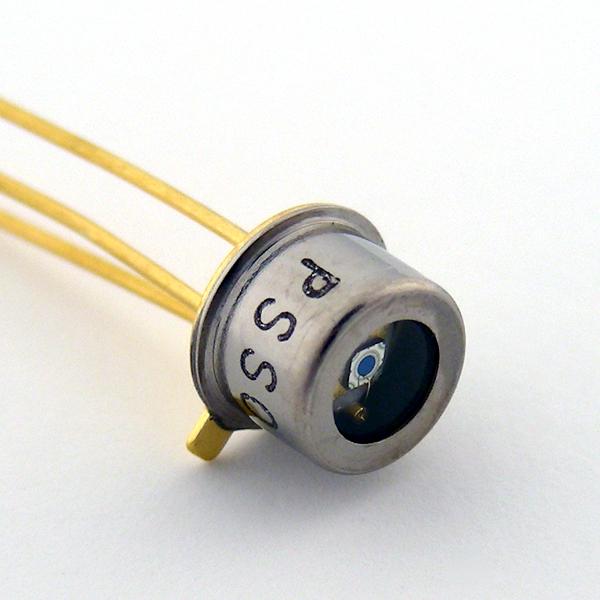

AD500-12-TO52S1.1
